2,500 lb x 0.5 lb
Platform: 39.4" x 39.4"
IP66 Rated Washdown
Price: $2,292.00
Ground S&H: $350.00
|

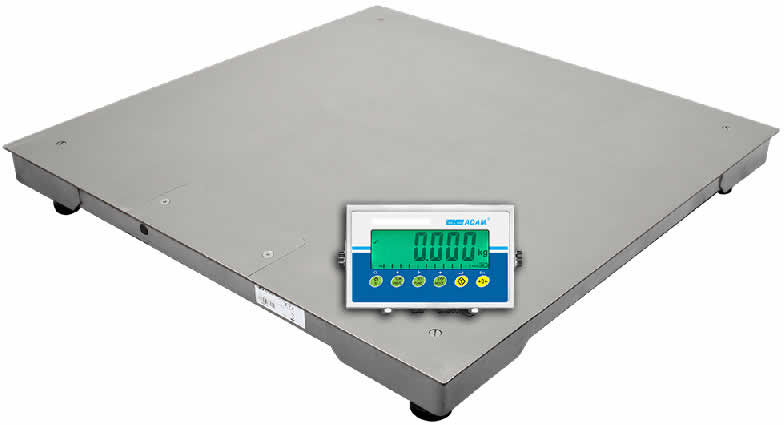

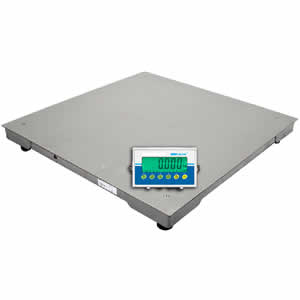

PT stainless steel platform scales feature a grade 304 stainless steel pan and reinforced frame beneath the scale for additional support. The platform boasts a IP66 rating alongside IP67-rated sealed load cells for advanced protection against dust and water ingress. The sleek brushed surface helps prevent the accumulation of food and dirt particles, making this scale ideal for weighing mining materials, food processing and chemical measurement. This range includes the AE403 indicator as standard, which has an IP67 rating and bracket included for mounting on walls and other vertical surfaces. The indicator offers an expanded range of weighing functions including checkweighing, parts counting, percentage weighing and display hold. Standard Features:
|
| Adam Equipment PT Stainless Steel Platforms with AE403 Indicator | |||
|---|---|---|---|
| Model | Capacity | Readability | Platform Size |
| PT 110S[AE403] | 2,500 lb / 1,000 kg | 0.5 lb / 0.2 kg | 39.4" x 39.4" |
| PT 112S[AE403] | 2,500 lb / 1,000 kg | 0.5 lb / 0.2 kg | 47.2" x 47.2" |
| PT 115S[AE403] | 2,500 lb / 1,000 kg | 0.5 lb / 0.2 kg | 59.1" x 59.1" |
| PT 310-5S[AE403] | 5,000 lb / 3,000 kg | 1 lb / 0.5 kg | 39.4" x 39.4" |
| PT 312-5S[AE403] | 5,000 lb / 3,000 kg | 1 lb / 0.5 kg | 47.2" x 47.2" |
| PT 315-5S[AE403] | 5,000 lb / 3,000 kg | 1 lb / 0.5 kg | 59.1" x 59.1" |
| PT 310-10S[AE403] | 10,000 lb / 4,500 kg | 2 lb / 1 kg | 39.4" x 39.4" |
| PT 312-10S[AE403] | 10,000 lb / 4,500 kg | 2 lb / 1 kg | 47.2" x 47.2" |
| PT 315-10S[AE403] | 10,000 lb / 4,500 kg | 2 lb / 1 kg | 59.1" x 59.1" |
| PT 110S [AE403a] Specifications | |
|---|---|
| Capacity | 2,500 lb / 1,000 kg |
| Readability | 0.5 lb / 0.2 kg |
| Repeatability | 1 lb / 0.4 kg |
| Weighing Units | g, kg, lb, lb:oz, oz, N, custom unit |
| Calibration | External calibration |
| Stabilization Time | 2.0 seconds |
| Pan Size | 39.4" x 39.4" / 1000 x 1000 mm |
| Linearity | 1 lb / 0.4 kg |
| Power Supply | 12VDC 800mA adapter / Internal rechargeable battery |
| Construction | Stainless steel |
| Indicator | AE403a |
| Interface | RS-232 |
| Operating Temperature | -10° to 40°C / 14° to 104°F |
| Net Weight | 136.6lb / 62kg |
| Overall Dimensions | 39.4" x 39.4" x 4.3" / 1000 x 1000 x 110 mm (wxdxh) |
| Display Digit Height | 1.6" / 40mm |
| Battery Life (Hours) | 90.0 hours |
