Home › Bench Scales › Ohaus › Defender 5000 D52P50RTR1

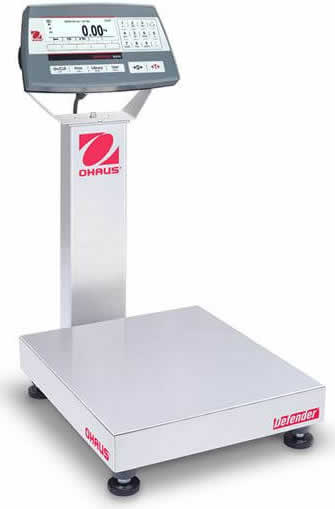

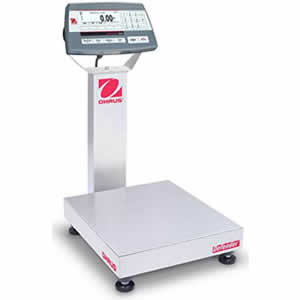

Ohaus D52P50RTR1 Scale for Sale

Sporting a new look and with added capabilities, next gen Defender D52P50RTR1 NTEP approved scales are the ideal fit in industrial environments. New connectivity and data storage options provide better flexibility than ever before. There are several size and capacity options available to you ensuring there is a Defender 5000 bench scale that will meet your specific weighing needs. 50,000 item library and common industrial modes such as checkweighing and parts counting truly make the Defender 5000 one of the best options in production and warehouse settings.

100 lb x 0.02 lb

Platform: 12" x 14"

NTEP Class III

Price: Lowest Price in Cart

Ground S&H: $60.00

Product Description
Specifications
Return Policy

TO ENSURE BEST POSSIBLE DISCOUNT REQUEST A QUOTE TODAY!!!

Multifunctional Bench Scale for Standard Industrial Applications
The OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Standard Features:

Indicator Guides The User with On-Screen Prompts

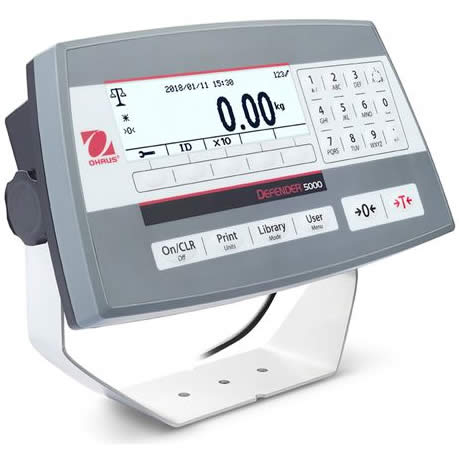

See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
Durably Constructed To Withstand Harsh Industrial Environments
Durably constructed with a stainless steel platform, silver-painted column, and aluminum load cell. Supports up to 6,250e NTEP and Measurement Canada certified resolution for legal-for-trade applications.
Multiple Application Modes and High Storage Capacity for Greater Flexibility
Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
Multiple Connectivity Options for Convenient Data Transfer and Storage
Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.

Ohaus Defender 5000 Series
Model	Capacity x Readability	NTEP Readability	Platform Size
D52P12RQR1	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb / 2 g	12" x 12"
D52P25RQR1	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb / 5 g	12" x 12"
D52P50RQR1	100 lb x 0.005 lb 50 kg × 2 g	0.02 lb / 10 g	12" x 12"
D52P12RTR1	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb / 2 g	12" x 14"
D52P25RTR1	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb / 5 g	12" x 14"
D52P50RTR1	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	12" x 14"
D52P50RQL2	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	18" x 18"
D52P125RQL2	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	18" x 18"
D52P50RTX2	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	18" x 24"
D52P125RTX2	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	18" x 24"
D52P250RTX2	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	18" x 24"
D52P50RQV3	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	24" x 24"
D52P125RQV3	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	24" x 24"
D52P250RQV3	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	24" x 24"
D52P500RQV3	1,000 lb x 0.05 lb 500 kg x 20 g	0.2 lb / 100 g	24" x 24"
D52P125RTV3	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	23.6" x 31.5"
D52P250RTV3	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	23.6" x 31.5"
D52P500RTV3	1,000 lb x 0.05 lb 500 kg x 20 g	0.2 lb / 100 g	23.6" x 31.5"

Defender 5000 D52P50RTR1 Specifications
Capacity x Readability (lb)	100 lb x 0.005 lb
Capacity x Readability (kg)	50 kg x 2 g
Max. Displayed Resolution	1: 25,000
Capacity x Readability (NTEP lb)	100 lb x 0.02 lb
Capacity x Readability (NTEP kg)	50 kg x 10 g
Min APW (g)	0.1 grams
Internal Counting Resolution	1:500,000
Linearity/Repeatability	± 2d
Indicator	TD52P ABS Indicator
Column	13.8 in. / 350 mm powder-coated steel
Base Construction	Stainless steel removable weighing platform, powder-coated steel base construction, aluminum loadcell silicon sealed against moisture
Safe Overload Capacity	150% of maximum capacity
Stabilization Time	Within 1 second
Operating Temp. Range	14°F to 104°F / -10°C to 40°C
D52P Scale Dimensions (B x A x C x D x E x F)	12 x 14 x 3.9 x 2.4 x 22.6 x 19.3 in 305 x 355 x 99 x 60 x 574 x 491 mm
Shipping Dimensions (L × W × H)	18.9 x 17.5 x 14.3 in 480 x 445 x 363 mm
Approx. Net Weight	24.3 lb / 11 kg
Approx. Shipping Weight	26.5 lb / 12 kg
Indicator Construction	ABS plastic
Weighing Units	lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application Modes	Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display	Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard	6 function, 5 quick, 12 alpha numeric membrane switches
Auto-zero Tracking	Off, 0.5 d, 1 d or 3 d
Zeroing Range	2% or 100% of capacity
Interface	Standard RS232 Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, Analog Output, 2 In/4 Out Discrete I/O
Power	100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (Optional)
Battery Life	20 hours continuous use
Calibration	Zero, Span or 3 point-Linear
Warranty	1 Year Manufacturer's Warranty
