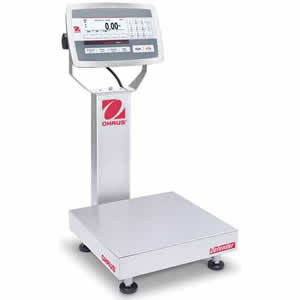

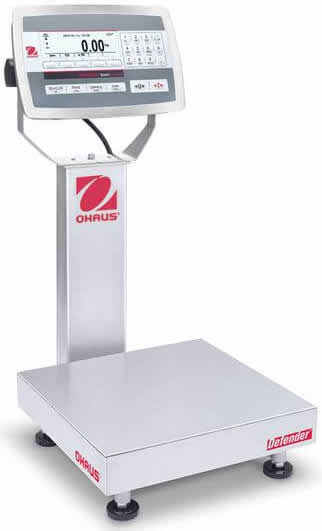

Ohaus D52XW12RQR1 Scale for Sale

Featuring the robust Ohaus TD52XW indicator, the Defender 5000 D52XW12RQR1 is a durable option for weighing up to 25 pounds. The display itself is washdown protected but the base is not making it a semi washdown scale. The maximum weight is can display is 25 pounds and the minimum piece weight for counting purposes is 0.025 grams. Communication options are available if a standard single RS232 isn't enough.

25 lb x 0.001 lb

Platform: 12" x 12"

Stainless Steel Indicator

Price: Lowest Price in Cart

Ground S&H: $60.00

Product Description
Specifications
Return Policy

TO ENSURE BEST POSSIBLE DISCOUNT REQUEST A QUOTE TODAY!!!

Multifunctional Bench Scale for Standard Industrial Applications
OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Standard Features:

Indicator Guides The User with On-Screen Prompts
See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
Durably Constructed To Withstand Harsh Industrial Environments
Durably constructed with a stainless steel platform, silver-painted column, and aluminum load cell. Supports up to 6,250e NTEP and Measurement Canada certified resolution for legal-for-trade applications.
Multiple Application Modes and High Storage Capacity for Greater Flexibility
Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
Multiple Connectivity Options for Convenient Data Transfer and Storage
Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.
Includes T52XW Indicator
IP68 rated / NEMA 4x rated protection with housing made from 304 stainless steel with sand blasted surface treatment and stainless steel bracket.

Ohaus Defender 5000 Series with TD52XW S.S. Indicator
Model	Capacity x Readability	NTEP Readability	Platform Size
D52XW12RQR1	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb / 2 g	12" x 12"
D52XW25RQR1	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb / 5 g	12" x 12"
D52XW50RQR1	100 lb x 0.005 lb 50 kg × 2 g	0.02 lb / 10 g	12" x 12"
D52XW12RTR1	25 lb x 0.001 lb 12.5 kg x 0.5 g	0.005 lb / 2 g	12" x 14"
D52XW25RTR1	50 lb x 0.002 lb 25 kg x 1 g	0.01 lb / 5 g	12" x 14"
D52XW50RTR1	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	12" x 14"
D52XW50RQL2	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	18" x 18"
D52XW125RQL2	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	18" x 18"
D52XW50RTX2	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	18" x 24"
D52XW125RTX2	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	18" x 24"
D52XW250RTX2	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	18" x 24"
D52XW50RQV3	100 lb x 0.005 lb 50 kg x 2 g	0.02 lb / 10 g	24" x 24"
D52XW125RQV3	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	24" x 24"
D52XW250RQV3	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	24" x 24"
D52XW500RQV3	1,000 lb x 0.05 lb 500 kg x 20 g	0.2 lb / 100 g	24" x 24"
D52XW125RTV3	250 lb x 0.01 lb 125 kg x 5 g	0.05 lb / 20 g	23.6" x 31.5"
D52XW250RTV3	500 lb x 0.02 lb 250 kg x 10 g	0.1 lb / 50 g	23.6" x 31.5"
D52XW500RTV3	1,000 lb x 0.05 lb 500 kg x 20 g	0.2 lb / 100 g	23.6" x 31.5"

Defender 5000 D52XW12RQR1 Specifications
Capacity x Readability (lb)	25 lb x 0.001 lb
Capacity x Readability (kg)	12.5 kg x 0.5 g
Max. Displayed Resolution	1: 25,000
Capacity x Readability (NTEP lb)	25 lb x 0.005 lb
Capacity x Readability (NTEP kg)	12.5 kg x 2 g
Min APW (g)	0.025 g
Internal Counting Resolution	1:500,000
Linearity/Repeatability	± 2d
Indicator	TD52XW Stainless Steel Indicator
Column	13.8 in. / 350 mm powder-coated steel
Base Construction	Stainless steel removable weighing platform, powder-coated steel base construction, aluminum loadcell silicon sealed against moisture
Safe Overload Capacity	150% of maximum capacity
Stabilization Time	Within 1 second
Operating Temp. Range	14 °F to 104 °F / -10 °C to 40 °C
D52XW Scale Dimensions (B x A x C x D x E x F)	12 x 12 x 3.7 x 2.4 x 23.8 x 17.4 in 305 x 305 x 95 x 60 x 604 x 442 mm
Shipping Dimensions (L × W × H)	18.9 x 17.5 x 14.3 in 480 x 445 x 363 mm
Approx. Net Weight	24.3 lb / 11 kg
Approx. Shipping Weight	26.5 lb / 12 kg
Indicator Construction	304 stainless steel with sand blasting surface treatment
Protection	IP68 / NEMA 4X
Weighing Units	lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application Modes	Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display	Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard	6 function, 5 quick, 12 alpha numeric membrane switches
Auto-zero Tracking	Off, 0.5 d, 1 d or 3 d
Zeroing Range	2% or 100% of capacity
Interface	Standard RS232, Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, Analog Output, 2 In/4 Out Discrete I/O
Power	100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (Optional)
Battery Life	20 hours continuous use
Calibration	Zero, Span or 3 point-Linear
Warranty	1 Year Manufacturer's Warranty
