10 lb x 0.001 lb
Platform: 9.8" x 9.8"
High Pressure Washdown
Price: Lowest Price in Cart
Ground S&H: $50.00
|

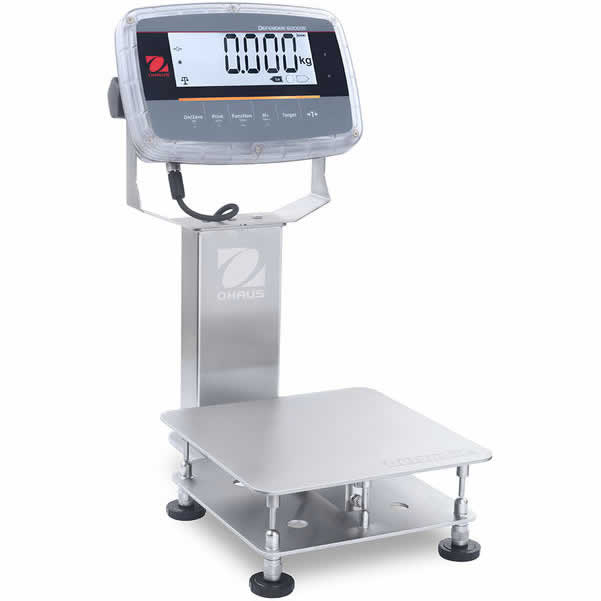

Defender 6000 meets the weighing needs of practically any food or chemical processing and packaging application with advanced software, including configurable checkweighing, parts counting, check counting, percent weighing, dynamic weighing, and display hold. The Defender 6000 is NSF certified, USDA-AMS accepted, supports HACCP systems and makes an excellent choice for food processing environments. The base has an open frame base design with no exposed threads, tight corners or other places where material can build up. The column has been designed with an open back for easy cleaning, and optional overpans reduce the build-up of material on the frame. All these features work together to limit the risks from food cross contamination and food-borne illness. Defender 6000 scale with the i-DT61PW indicator features polycarbonate IP69K-protected indicator housings for superior protection against moisture during the hot and cold cycles experienced in processing operations. A moisture meter sticker included inside the clear back housing warns the service team if there is a build-up of moisture in the indicator. The indicator includes six keys and a large, bright, backlit LCD screen for clear display of the weight on the scale. The easy-to-read 3-color check light bar spans the width of the display. This makes the status of the weight on the pan against targets clearly visible – yellow for Low or under target, green for OK, and red for Hi or over target – and increases throughput and accuracy in portioning, packaging, and grading applications. The i-DT61PW operates for up to 1,600 hours on one set of batteries for months of use. The battery-powered design eliminates the need for a mains connection for increased flexibility in the processing area. The clear, rear battery housing allows for an easy visual check for battery damage. Batteries can be changed without breaking the approval seal for legal-for-trade applications. An optional Infrared (IR) communication kit is available for connectivity without opening the housing of i- DT61PW indicator. The indicator can store up to 1,000 weighing results, easily transferred to a PC or system for traceability. Standard Features:
|
| Ohaus Defender 6000 Series - Extreme Washdown Bench Scales | |||
|---|---|---|---|
| Model | NTEP Cap x Read | Indicator | Pan Size |
| i-D61XWE5K1S6 | 10 lb x 0.002 lb 5 kg x 1 g |
Stainless Steel | 9.8" x 9.8" |
| i-D61XWE12K1R6 | 25 lb x 0.005 lb 12.5 kg x 5 g |
Stainless Steel | 11.8" x 11.8" |
| i-D61XWE25K1R6 | 50 lb x 0.01 lb 25 kg x 5 g |
Stainless Steel | 11.8" x 11.8" |
| i-D61XWE50K1L7 | 100 lb x 0.02 lb 50 kg x 10 g |
Stainless Steel | 19.7" x 15.7" |
| i-D61XWE150K1L7 | 300 lb x 0.1 lb 150 kg x 50 g |
Stainless Steel | 19.7" x 15.7" |
| i-D61PW5K1S6 | 10 lb x 0.002 lb 5 kg x 1 g |
Polycarbonate Plastic | 9.8" x 9.8" |
| i-D61PW12K1R6 | 25 lb x 0.005 lb 12.5 kg x 5 g |
Polycarbonate Plastic | 11.8" x 11.8" |
| i-D61PW25K1R6 | 50 lb x 0.01 lb 25 kg x 5 g |
Polycarbonate Plastic | 11.8" x 11.8" |
| i-D61PW50K1L7 | 100 lb x 0.02 lb 50 kg x 10 g |
Polycarbonate Plastic | 19.7" x 15.7" |
| i-D61PW150K1L7 | 300 lb x 0.1 lb 150 kg x 50 g |
Polycarbonate Plastic | 19.7" x 15.7" |
| Defender 6000 i-D61PW5K1S6 Specifications | |
|---|---|
| Capacity x Readability (lb) | 10 lb x 0.001 lb |
| Capacity x Readability (kg) | 5 kg x 0.5 g |
| Max. Displayed Resolution | 1:10,000 |
| Capacity x Readability (NTEP lb) |
10 lb x 0.002 lb |
| Capacity x Readability (NTEP kg) |
5 kg x 1 g |
| Max Certified Resolution | 1:5,000 |
| Linearity/Repeatability | ± 2d |
| Indicator | i-DT61PW |
| Column | 10.2 in / 260 mm 316 stainless steel |
| Base Construction | 316 stainless steel top and bottom frame, hermetically sealed IP68/IP69K stainless steel loadcell |
| Safe Overload Capacity | 150% of maximum capacity |
| Stabilization Time | Within 1 second |
| Operating Temp. Range | 14 °F to 104 °F / -10 °C to 40 °C |
| Scale Dimensions |
9.8 x 9.8 x 4.2 x - x 19.8 x 14.8 in 250 x 250 x 106 x - x 504 x 376 mm |
| Shipping Dimensions (L × W × H) |
19.3 x 17.7 x 15 in 490 x 450 x 380 mm |
| Approx. Net Weight | 22.1 lb / 10 kg |
| Approx. Shipping Weight | 26.5 lb / 12 kg |
| Indicator Construction | Polycarbonate plastic housing, 316 stainless steel bracket |
| Indicator Protection | IP68 immersion / IP69K washdown |
| Weighing Units | Kilogram, Gram, Pound, Ounce, Pound: Ounce, Tonne (Metric Tonne) |
| Application Modes | Weighing, Checkweighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting, Filling |
| Display | 6-digit, 7-segment LCD display with white backlight, 45 mm / 1.8 in high digits |
| Check Indicator | 3 Color (red, green, yellow) LED Bar |
| Keyboard | 6 function mechanical keys |
| Auto-zero Tracking | Off, 0.5 d, 1 d or 3 d |
| Zeroing Range | 2% or 100% of capacity |
| Interface | Optional IR Communication Kit (with magnetic front panel connection) |
| Power | 6 x D type cell battery |
| Battery Life | Up to 1,600 hours continuous use with backlight off |
| Calibration | Zero, Span or 3 point-Linear |
