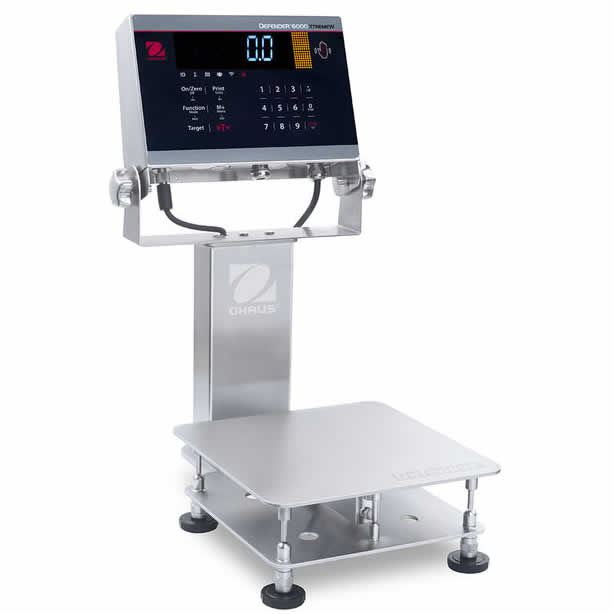

Ohaus i-D61XWE5K1S6 Scale for Sale

For extreme washdown protection the Defender 6000 is the ideal checkweigher for tough tasks during food processing. NSF listed/certified, USDA-AMS accepted, and supports HACCP compliance means the i-D61XWE5K1S6 will meet the approval requirements in the USA. Featuring advanced applications including configurable Checkweighing, Percent Weighing, Filling and Dynamic Weighing or Display Hold, the Defender 6000 meets the weighing needs of practically any food or chemical processing application.

10 lb x 0.001 lb

Platform: 9.8" x 9.8"

High Pressure Washdown IP69K

Price: Lowest Price in Cart

Ground S&H: $50.00

Product Description
Specifications
Return Policy

Advanced IP68/IP69K Washdown Bench Scale
The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermeticallysealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.

Standard Features:

Library and User Management: Up to 300 library items (stores part number,
tare weights, APWs, under/over limits, set points or reference weight) can be
shared within different weighing modes. Up to 100 user IDs can be stored for
secure user access and traceability. (ONLY i-D61XWE MODELS)
Filling: Fill a container to a target weight. 3-color bar matrix displays filling
status. Connect with Discrete I/O option kit for an auto-filling system. (ONLY i-D61XWE MODELS)
Defender 6000 stands up to harsh cleaning in processing and packaging environments with IP68 immersion/ IP69K washdown protection, 316 stainless steel construction and hermetically-sealed load cell.
Durable Defender 6000 is NSF certified, supporting HACCP systems with a 316 stainless steel base and sturdy indicator providing corrosion protection in food, chemical processing, and packaging.
Versatile scales include fast weight display and multiple software modes to meet food, chemical processing, and packaging needs.
Defender 6000 is designed for simple connectivity in a variety of application settings.

Ohaus Defender 6000 Series - Extreme Washdown Bench Scales
Model	NTEP Cap x Read	Indicator	Pan Size
i-D61XWE5K1S6	10 lb x 0.002 lb 5 kg x 1 g	Stainless Steel	9.8" x 9.8"
i-D61XWE12K1R6	25 lb x 0.005 lb 12.5 kg x 5 g	Stainless Steel	11.8" x 11.8"
i-D61XWE25K1R6	50 lb x 0.01 lb 25 kg x 5 g	Stainless Steel	11.8" x 11.8"
i-D61XWE50K1L7	100 lb x 0.02 lb 50 kg x 10 g	Stainless Steel	19.7" x 15.7"
i-D61XWE150K1L7	300 lb x 0.1 lb 150 kg x 50 g	Stainless Steel	19.7" x 15.7"
i-D61PW5K1S6	10 lb x 0.002 lb 5 kg x 1 g	Polycarbonate Plastic	9.8" x 9.8"
i-D61PW12K1R6	25 lb x 0.005 lb 12.5 kg x 5 g	Polycarbonate Plastic	11.8" x 11.8"
i-D61PW25K1R6	50 lb x 0.01 lb 25 kg x 5 g	Polycarbonate Plastic	11.8" x 11.8"
i-D61PW50K1L7	100 lb x 0.02 lb 50 kg x 10 g	Polycarbonate Plastic	19.7" x 15.7"
i-D61PW150K1L7	300 lb x 0.1 lb 150 kg x 50 g	Polycarbonate Plastic	19.7" x 15.7"

Defender 6000 i-D61XWE5K1S6 Specifications
Capacity x Readability (lb)	10 lb x 0.001 lb
Capacity x Readability (kg)	5 kg x 0.5 g
Max. Displayed Resolution	1:10,000
Capacity x Readability (NTEP lb)	10 lb x 0.002 lb
Capacity x Readability (NTEP kg)	5 kg x 1 g
Max Certified Resolution	1:5,000
Linearity/Repeatability	± 2d
Indicator	i-DT61XWE
Column	10.2 in / 260 mm 316 stainless steel
Base Construction	316 stainless steel top and bottom frame, hermetically sealed IP68/IP69K stainless steel loadcell
Safe Overload Capacity	150% of maximum capacity
Stabilization Time	Within 1 second
Operating Temp. Range	14 °F to 104 °F / -10 °C to 40 °C
Scale Dimensions	9.8 x 9.8 x 4.2 x - x 20.4 x 14.8 in 250 x 250 x 106 x - x 518 x 376 mm
Shipping Dimensions (L × W × H)	19.3 x 17.7 x 15 in 490 x 450 x 380 mm
Approx. Net Weight	23.2 lb / 10.5 kg
Approx. Shipping Weight	28.7 lb / 13 kg
Indicator Construction	316 Stainless steel housing, 316 stainless steel bracket
Indicator Protection	IP68 immersion / IP69K washdown
Weighing Units	Kilogram, Gram, Pound, Ounce, Pound: Ounce
Application Modes	Weighing, Checkweighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting, Filling (i-DT61XWE only)
Display	6-digit, 7-segment white LED, 20 mm / 0.8 in high digits
Check Indicator	3 color (red, green, orange) 8x16 dot matrix LED
Keyboard	6 function keys + 12 numeric capacitive keypad
Auto-zero Tracking	Off, 0.5 d, 1 d or 3 d
Zeroing Range	2% or 100% of capacity
Interface	RS232 and USB Host included Optional Ethernet, WiFi/Bluetooth, 2nd RS232/ RS485/USB Device, Analog Output, 2 In/4 Out Discrete I/O
Power	100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or external power bank
Battery Life	Depends on the capacity of power bank used (Up to 55 hours with 20,000mAh power bank)
Calibration	Zero, Span or 3 point-Linear
