Legal for Trade Floor Scale

Ohaus i-DF33P5000B1L Scale for Sale

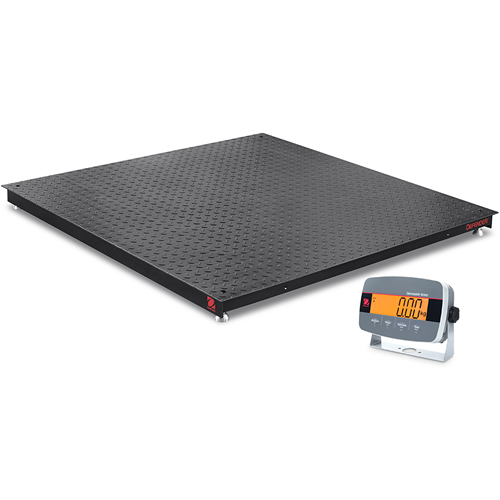

Ohaus i-DF33P5000B1L floor scales feature large square platform with adjustable leveling feet for weighing on uneven surfaces.  It's a new platform scale perfect for weighing boxes or pallets in a warehouse or stockroom.  Each floor scale is legal for trade for NTEP certified weighing.  It features 4' x 4' carbon steel platform, weighs in pounds or kilograms, RS232 interface and also has a counting function.

5,000 lb x 1 lb

Platform: 4' x 4'

Certified Legal for Trade

Price: $1,650.00

Ground S&H: $350.00

Accessories

SF40A Impact Printer with Cable $1,295.00

Defender 3000 Floor Platforms meet dry weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. Defender 3000 Series floor platforms offer a unique combination of value and dependability that your company can rely on. Ramps and mounting plates are available.

Standard Features:

  • Powder coated carbon steel with four alloy steel load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction.
  • Platforms are equipped with an 20 ft EasyConnect™ cable which allows instant configuration with Defender indicators for quicker installation.
  • Four alloy steel shear beam load cells with top-adjustable height swiveling ball-in-cup design feet to ease installation.

i-DF33P5000B1L Specifications
Capacity x Readability Pounds 5,000 lb x 1 lb
Capacity x Readability Kilograms 2,500 kg x 0.5 kg
NTEP Certified
Resolution
1:5,000
Weighing Units kg, lb, t
Platform Size 4 ft x 4 ft x 3.5 in
Platform Material Powder coated carbon steel, raised treaded surface, fixed top plate 5mm / 0.196 in thick
Indicator ABS plastic indicator (i-DT33P)
Display 6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Keyboard 4 membrane function keys
Load Cell Model 4 x alloy steel, shear beam, NTEP Class III M
Load Cell
Capacity Emax
1,100 kg
Load Cell Output
Impedance
350 ohm ± 3.5 ohm
Load Cell
Excitation Voltage
5V ~ 15V, DC/AC
Junction Box IP65, 304 stainless steel, with 20’ EasyConnect cable
Net Weight 269 lb / 122 kg
Approx. Shipping
Weight
302 lb / 137 kg
Shipping Dimension
(W x L x H)
4.2 x 4.2 x 0.9 ft 129 x 129 x 27 cm
Application Modes Weighing, Parts Counting, Checkweighing and Totalization
Displays 6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Interface RS232 included Optional USB, Ethernet
Power i-DF33P: 100-240 VAC / 50/60 Hz Universal Power Supply or C cell battery (Not included, 100-hour operation); Optional rechargeable battery (30-hour operation on full charge)
Maximum
Central Load
160% of maximum capacity
Safe Endload
Capacity
100% of maximum capacity
Operating
Temperature
14°F – 104°F / -10°C – 40°C, 85%RH, non-condensing
Feet 4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top leveling
Accessories Ramps, Mounting Foot Plates, Floor Columns
