420 g x 0.01 g
Platform: 5.7" Diameter
One Second Stabilization
Price: $385.00
Ground S&H: $20.00
|

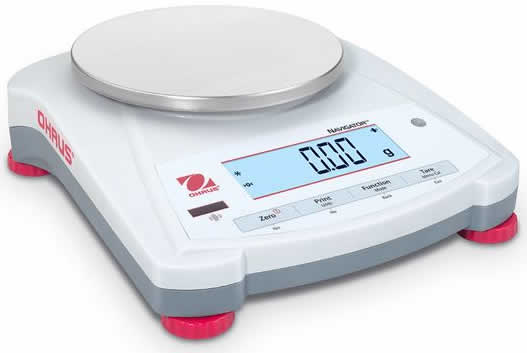

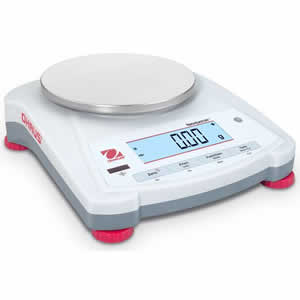

OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator is a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation. Standard Features:
|
| Ohaus Navigator Series | ||
|---|---|---|
| Model | Capacity x Resolution | Platform Size |
| NV222 | 220 g x 0.01 g | Ø 5.7" |
| NV422 | 420 g x 0.01 g | Ø 5.7" |
| NV221 | 220 g x 0.1 g | 7.5" x 5.7" |
| NV621 | 620 g x 0.1 g | 7.5" x 5.7" |
| NV1201 | 1,200 g x 0.1 g | 7.5" x 5.7" |
| NV2201 | 2,200 g x 0.1 g | 7.5" x 5.7" |
| NVT2201 | 2,200 g x 0.1 g | 9.1" x 6.9" |
| NVT4201 | 4,200 g x 0.1 g | 9.1" x 6.9" |
| NVT2200 | 2,200 g x 1 g | 9.1" x 6.9" |
| NVT6200 | 6,200 g x 1 g | 9.1" x 6.9" |
| NVT12000 | 12,000 g x 1 g | 9.1" x 6.9" |
| NVT22000 | 22,000 g x 1 g | 9.1" x 6.9" |
| Navigator NV422 Specifications | |
|---|---|
| Capacity | 420 g |
| Readability | 0.01 g |
| Span Calibration Mass* | 200 g |
| Linearity Calibration Mass |
200, 400 g |
| Stabilization Time | 1.5 seconds |
| Construction | ABS housing and stainless steel pan |
| Calibration | User-selectable external span or linearity calibration / Digital with external weight |
| Tare Range | Full capacity by subtraction |
| Weighing Units | g, kg, N, oz, ozt, dwt, lb, lb:oz, ct, grain |
| Application Modes | Weighing, Parts Counting, Percent Weighing, Checkweighing |
| Power Requirement | AC adapter (included) or 4 C batteries (not included) |
| Typical Battery Life | 270 hours |
| Temperature Range | 10 °C (50 °F) to 40 °C (104 °F) at 10% to 85% relative humidity, non-condensing |
| Storage Conditions | -20 °C (-4 °F) to 55 °C (131 °F) at 10% to 90% relative humidity, non-condensing |
| Communication | RS232, USB, or Ethernet (available as accessories) |
| Display Type | Liquid Crystal Display (LCD) with backlight |
| Display Size | 0.78 in. / 20 mm digits |
| Pan Size (W × D) | Ø 5.7 in. / 145 mm |
| Balance Dimensions (W × D × H) |
8 × 9.1 × 2.8 in. / 204 × 230 × 70 mm |
| Shipping Dimensions (W × D × H) |
11.8 × 9.8 × 5.3 in. / 300 × 250 × 134 mm |
| Net Weight | 2.2 lb / 1.0 kg |
| Shipping Weight | 3.3 lb / 1.5 kg |
