Ohaus PX4202/E Balance for Sale

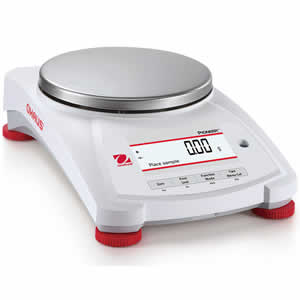

Ohaus PX4202/E is a precision balance for the laboratory where accurate weight measurements are needed. Toploading balances from the Pioneer Series feature large 7.09 inch round weighing pan, multiple weighing units, parts counting, percentage modes as well as USB and RS232 interfaces.

4,200 g x 0.01 g

Platform: 7.09" Diameter

Electromagnetic Loadcell

Price: Lowest Price in Cart

Ground S&H: $35.00

Product Description
Specifications
Return Policy

2 Line Display
A brightly lit dual line display shows the weight in an easy-to-read manner, while a dot-matrix second line provides additional information or guidance prompts to the user.

Durable Construction
Featuring a cast metal lower housing, metal sub-pan, stainless steel weighing pan and removable draftshield or side doors, the Pioneer is durably constructed for long-term use, and suitable for a variety of applications.

Communication Ports (RS-232, USB)
Standard RS-232 and USB device ports allow for easy connectivity to printers and other peripherals, allowing convenient capture of results. OHAUS’ free data collection tool (SPDC) provides a simple solution to import this data directly in formats such as Excel, Access, .txt, .csv etc..

Internal Calibration (Optional Feature)
Allows the balance to be quickly calibrated and adjusted with the push of a button, thereby eliminating the expense and maintenance of separate calibration weights.

Static Removal Bar (On Draft Shield Models Only)
A static removal bar along the top of the draftshield provides a convenient grounding location, allowing the user to discharge any static charge that may have accumulated prior to handling samples and weighing. This helps compliance with good weighing practices, while improving the stability and accuracy of results.

Pioneer PX Laboratory Balances
Model	Capacity x Resolution	Platform Size	Calibration
PX85	82 g x 0.00001 g	Ø 3.15" / 80 mm	Internal Cal
PX225D	82 g x 0.00001 g 220 g x 0.0001 g	Ø 3.15" / 80 mm	Internal Cal
PX84/E	84 g x 0.0001 g	Ø 3.54 inch / 90 mm	External Only
PX84	84 g x 0.0001 g	Ø 3.54 inch / 90 mm	Internal Cal
PX124/E	120 g x 0.0001 g	Ø 3.54 inch / 90 mm	External Only
PX124	120 g x 0.0001 g	Ø 3.54 inch / 90 mm	Internal Cal
PX224/E	220 g x 0.0001 g	Ø 3.54 inch / 90 mm	External Only
PX224	220 g x 0.0001 g	Ø 3.54 inch / 90 mm	Internal Cal
PX163/E	160 g x 0.001 g	Ø 4.72 inch / 120 mm	External Only
PX163	160 g x 0.001 g	Ø 4.72 inch / 120 mm	Internal Cal
PX323/E	320 g x 0.001 g	Ø 4.72 inch / 120 mm	External Only
PX323	320 g x 0.001 g	Ø 4.72 inch / 120 mm	Internal Cal
PX523/E	520 g x 0.001 g	Ø 4.72 inch / 120 mm	External Only
PX523	520 g x 0.001 g	Ø 4.72 inch / 120 mm	Internal Cal
PX1602/E	1,600 g x 0.01 g	Ø 7.09 inch / 180 mm	External Only
PX1602	1,600 g x 0.01 g	Ø 7.09 inch / 180 mm	Internal Cal
PX2202/E	2,200 g x 0.01 g	Ø 7.09 inch / 180 mm	External Only
PX2202	2,200 g x 0.01 g	Ø 7.09 inch / 180 mm	Internal Cal
PX3202/E	3,200 g x 0.01 g	Ø 7.09 inch / 180 mm	External Only
PX3202	3,200 g x 0.01 g	Ø 7.09 inch / 180 mm	Internal Cal
PX4202	4,200 g x 0.01 g	Ø 7.09 inch / 180 mm	Internal Cal
PX2201	2,200 g x 0.1 g	Ø 7.09 inch / 180 mm	Internal Cal
PX4201	4,200 g x 0.1 g	Ø 7.09 inch / 180 mm	Internal Cal

Pioneer PX4202/E Specifications
Capacity x Readability	4,200 g x 0.01 g
Repeatability (STDEV) (g)	0.01 g
Linearity (g)	± 0.02 g
Stabilization Time	1 second
Weighing Units	Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Ounce Troy, Grain, Newton, Hong Kong Tael, Singapore Tael, Taiwan Tael, Momme, Tical (MM), Mesghal, Tola (India), 1 Custom unit
Platform Size	Ø 7.09" / 180 mm
Applications	Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Power Supply	Power Input:100 – 240V ~ 200mA 50 – 60Hz 12 –18VA Power Output:12 VDC 0.5A
Overall Dimensions (W × D × H)	8.2 × 12.6 × 3.9 inch / 20.8 × 32.0 × 9.8 cm
Operating Conditions	50 °F to 86 °F / 10 °C to 30 °C
Storage Conditions	14 °F to 140 °F / -10 °C to 60 °C at 10% to 90% relative humidity, non-condensing
Interface	USB and RS-232
Calibration	External Calibration Only
Net Weight	7.7 lb / 3.5 kg
Shipping Weight	11 lb / 5 kg
Shipping Dimensions (W × D × H)	20 × 15 × 12 inch / 55.0 × 38.5 × 29.1 cm
