Home › NTEP Approved Scales › Ohaus › SJX323N/E

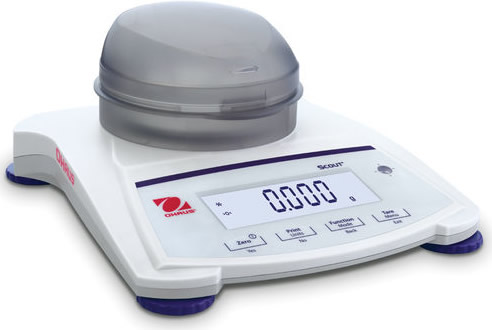

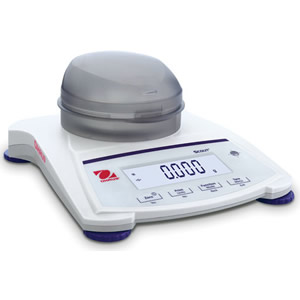

Ohaus SJX323N/E Balance for Sale

Scout's ingenious draft shield (1mg model only) was designed with an easy to remove top cover piece. This serves as a wind protection ring which keeps the weighing surface stable in drafty environments, while maintaining weighing speed. NTEP and Measurement Canada approved models meet or exceed Class II accuracy requirements, making the Scout ideal for commercial applications where reliability and precision are essential. With expanded connectivity options including RS232, USB Host, USB Device, Ethernet and Bluetooth, the Scout provides added versatility to data logging and communication.

64 g x 0.01 g

Platform: 3.7" Diameter

Certified Legal for Trade

Price: $560.00

Ground S&H: $25.00

Product Description
Specifications
Return Policy

Designed for a wide range of Legal-for-Trade applications, the Class ll and Class III certified SJX Carat and Gold balances are ideal for weighing jewelry, precious metals and gemstones. Equipped with superior overload protection, large backlit display, fast stabilization time, multiple weighing units, application modes and connectivity options, these slim balances offer a truly user-friendly weighing experience.

Standard Features:

Geared for the Job with NTEP Approval & Superior Overload Protection
Scout meets Class ll and III accuracy requirements for countertop retail applications. Integrated superior overload protection system protects the balance from damage ensuring durability in everyday applications.
Large Backlit LCD Clearly Shows Weighing Results in Retail Applications
The Scout SJX is equipped with a bright white backlit display which shows the net weight
of precious metals and stones clearly. An optional auxiliary display can also be installed.
Fast Weighing Speed and High Resolution Deliver Repeatable & Reliable Results
Stabilization time as fast as 1 second means quick results and increased efficiency.
Equipped with superior weighing technology, the Scout also ensures repeatable and
reliable weighing results.
Multiple Connectivity Options Available for Data Logging and Communication
With expanded connectivity options including RS232, USB Host, USB Device, Ethernet and Bluetooth®, the Scout provides added versatility to data logging and communication.

SJX Carat and Gold Series

Legal-for-Trade Approvals
NTEP and Measurement Canada approved models meet or exceed Class II or III accuracy requirements, making the Scout ideal for commercial applications where reliability and precision are essential.

Superior Protective Features
The superior mechanical overload protection system of the Scout is comprised of a high-strength stainless steel pan and an impact-resistant plastic pan support. This enables the balance to safely withstand loads up to 10 times its rated capacity.

Clear Viewing of Results
The large backlit LCD provides operators a clear view of their weighing results. An optional auxiliary display can also be installed easily to provide additional weight notifications to customers in retail environments.

Improved Performance
Stabilization time as fast as 1 second and high resolution load cell with up to 150,000d resolution and readability to 0.001g, deliver extremely quick, precise and repeatable weighing results.

Expanded Connectivity Options
Scout has multiple connectivity options for convenient data logging and communication, as well as connecting to an auxiliary display. Options include - RS232, USB Host, USB Device, Ethernet and Bluetooth®. With the USB Host option, you can simply save and transfer data from the
balance to a USB drive. The Bluetooth option allows you to wirelessly operate the balance via a mobile device or tablet for Android™.

Draftshield Model Available
Scout’s ingenious draftshield (1mg model only) was designed with an easy to remove top cover piece. This serves as a wind protection ring which keeps the weighing surface stable in drafty environments, while maintaining weighing speed.

Built-in Application Modes

Weighing — Determines the weight of items on the pan in the selected unit of measure.
Parts Counting — Counts the number of pieces on the pan using a uniform weight.
Percent Weighing — Measures the weight of a sample displayed as a percentage of a pre-established reference weight.
Check Weighing — Compares the weight of a sample against target limits.
Totalization — Measures cumulative weight of multiple items. Cumulative total may exceed balance capacity.
Density Determination — Determines density of solids or liquid. With the integrated weigh below hook, it is possible to perform specific gravity tests for objects that cannot be easily placed on the weighing pan.
Display Hold — Manually holds the last stable weight or the first highest stable weighing value on the display.

Ohaus Scout SJX323N/E NTEP Approved Jewelry Scale
Capacity x Resolution (NTEP g)	64 g x 0.01 g
Capacity x Resolution (NTEP ct)	320 ct x 0.1 ct
Capacity x Resolution (g)	64 g x 0.001 g
Capacity x Resolution (ct)	320 ct x 0.01 ct
Capacity x Resolution (oz)	2.26 oz x 0.0005 oz
Capacity x Resolution (ozt)	2.06 ozt x 0.0005 ozt
Capacity x Resolution (dwt)	41 dwt x 0.001 dwt
Capacity x Resolution (grn)	987 grn x 0.2 grn
Units	g, ct, oz, ozt, dwt, grn
NTEP Approval (Class II)	NIST Handbook 44 (NTEP CC 16-015); Measurement Canada Weights and Measures Regulations (NoA AM-6008)
Platform Dimensions	Ø 3.7" / Ø 93 mm
Scale Dimensions	8" × 8.7" × 4.1" / 202 × 222 × 103 mm
Tare Range	Full capacity by subtraction
Repeatability	0.002 g
Linearity	± 0.003 g
Stabilization Time	1.5 seconds
Operating Temperature	Class II: 10°C (50°F) to 30°C (86°F) at 10% to 80% relative humidity, non-condensing
Span Calibration	50 g
Linear Calibration	30 g, 60 g
Display	Backlit LCD: 6-digit 7-segment with white LED backlight
Display Size	0.78 in / 20 mm digits
Connectivity (optional)	RS232, USB Host, USB Device, Ethernet or Bluetooth (available as accessories)
Application Modes	Weighing, Parts Counting, Percent Weighing, Check Weighing, Totalization, Density Determination, Display Hold
Sensor Type	Electromechanical Load Compensation
Typical Battery Life	80 hours
Power	AC adapter(included) or 4 AA batteries(not included)
