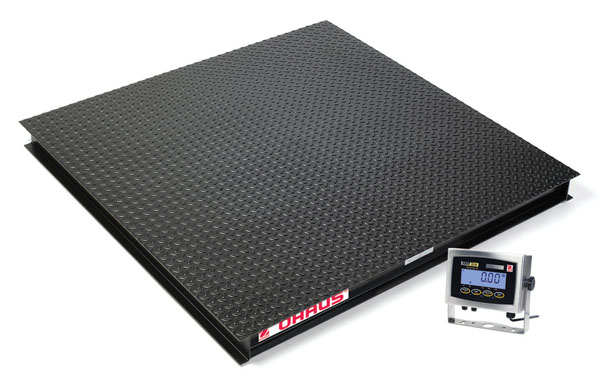

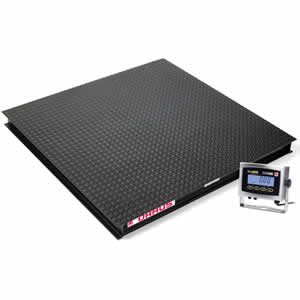

Ohaus VX Series is a portable low-profile floor platform and indicator scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments,
as well as startup businesses. Quick connects and factory calibration allows the package to operate out-of-the-box with minimal setup. This time saving solution combines a 5000d NTEP approved floor scale (VX2500L and VX5000L) with four analog sealed load cells, and a stainless steel NEMA 4X/IP66 indicator (T31XW) featuring an RS232 interface, high-visibility backlit LCD display, counting function and easy-to-operate positive feedback keys.
Standard Features:
- Legal for Trade
- NTEP Certifications:
- T31XW Indicator: CC 08-066
- VX Platform: CC 08-069
- Load cells: CC 91-043A4
- 2,500 lb, 5,000 lb, and 10,000 lb scale capacities
- 4’ x 4’ and 5’ x 5’ platforms with structural bracing that ensures a rigid construction
- 1/8” (up to 5,000lb models) and 5/16” (10,000lb models) thick top plate with raised cross-hatch surface for added durability and slip resistance
- Four IP67 nickel plated alloy steel load cells
- Side access NEMA4X/IP65 dust and water protected junction box with 25’ long cable
- Features eye bolt mounting holes to allow easier lifting and positioning of the platform
- Factory-wired and pre-calibrated with OHAUS T31XW stainless steel indicator featuring:
- 304 stainless steel construction with NEMA 4X/IP66 protection
- Backlit LCD display with high-visibility 1” high digits
- Five weighing units (lb, kg, g, oz, lb:oz)
- Piece counting mode for warehousing and inventory applications
- Wall mount bracket included
- 2 Year Limited Warranty
New Ohaus industrial floor scales feature T31XW remote stainless steel display. The T31XW can be wall or table mounted using included wall mount bracket for full tilt adjustment of the indicator.
T31XW Indicator Features:
- Large 1" high digit backlit LCD display quickly displays results in a choice of lb or kg. The power-on unit is selectable, and either the lb or kg unit can be turned off for easier use.
- Includes Counting Mode with a minimum Average Piece Weight of 1d, selectable sample sizes, automatic retention
of last sample size used and Average Piece Weight. For installations where Counting Mode is not required, the parts counting software can be selected off.
- Built-in bidirectional RS232C interface for printing or connection to PC. Printing intervals can be set to manual (using Print key), continuous, on stable weight, or an interval between 1 second and 60 minutes.
- Built-in bidirectional RS232C interface for printing or connection to PC. Printing intervals can be set to manual (using Print key), continuous, on stable weight, or an interval between 1 second and 60 minutes.
- Durable membrane switch keypad with dedicated Print, Tare and Function keys for quick and easy operation
- The T31XW can be wall or table mounted using the included wall mount bracket for full tilt adjustment of the indicator.
- Software lockouts of menu operations for setup, readout, mode, unit and print menu options. In NTEP certified operation,
certain menu options are automatically locked-out.
Ohaus - VX31XW5000L Washdown Floor Scale |
Capacity (metric) |
2,200 kg |
Readability (metric) |
0.5 kg |
Capacity (avoirdupois) |
5,000 lb |
Readability (avoirdupois) |
1 lb |
Material |
Painted Carbon Steel, treaded surface, fixed top plate, thickness 1/8 in (up to 5000 lb), 5/16 in (10,000 lb) |
NTEP Resolution |
NTEP 5000d |
Maximum Safe Static Load |
100% of maximum capacity |
Load Cell - Rated IP 67 (kg) |
Shear Beam, nickel plated alloy steel |
Load Cell Excitation (V dc) |
350 Ω ± 3 Ω / 10VDC recommended ~ 15VDC max |
Junction Box Material, Protection |
Side panel access, IP65 plastic case with 25´ indicator cable |
Feet |
Fixed bolt design, adjustable height |
Operating Temperature Range |
50°F to 104°F / 10°C to 40°C |
Indicator included |
T31XW |
Frame construction |
304 stainless steel, NEMA4X/IP66 dust and water protection |
Weighing units |
lb, kg, oz, g, lb-oz |
Weighing modes |
Weighing, Counting* (min APW 1d) |
Display |
1" high, 6-digit, 7-segment, bright white backlit LCD |
Keyboard |
4-button, raised with tactile positive feedback membrane switches |
Stabilization time |
Within 2 seconds |
Auto Zero Tracking: |
Off, 0.5, 1 or 3d |
Zeroing range |
0%, 2% or 100% of capacity |
Span Calibration |
5 lb or kg to 100% of capacity |
Interface |
RS232C, bi-directional |
Power |
100-240 VAC / 50-60 Hz, internal power supply |
Dimensions WxHxD |
8.3" x 2.8" x 5.8" |
Shipping dimensions (WxDxH) |
60" x 48" x 14" |
Shipping Weight |
269 lb |
|
