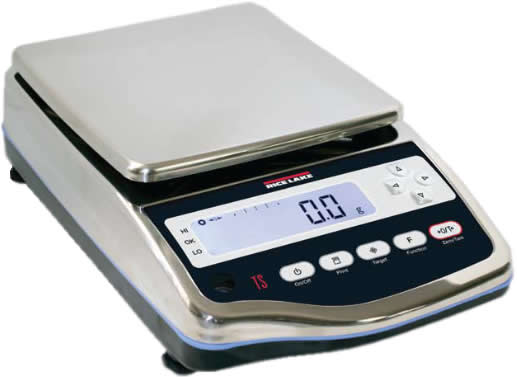

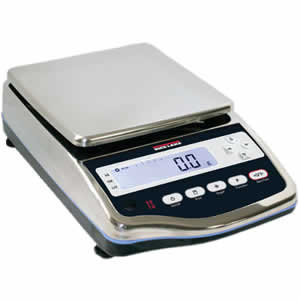

Rice Lake TS-6200 Balance for Sale

Ultimate in performance, stainless steel construction and tuning fork mechanism sets the Rice Lake TS-6200 apart from any other balance. For fastest warm-up time and superior overload protection, there is no other stainless steel precision balance in its class. Unique tuning fork technology provides a high-speed response time, with stable and reliable results. No more waiting for stabilization or warm up, simply plug in and go.

6,200 g x 0.1 g

Platform: 7.48" x 7.48"

Stainless Steel Construction

Price: $1,295.00

Ground S&H: $30.00

Product Description
Specifications
Return Policy

Sleek looking stainless steel housing of Rice Lake’s TS Series is more than just attractive. This mirror finish is a barrier against potentially destructive elements. For work environments where anything can happen, trust in a balance that delivers performance inside and out.

The polished finish of the TS Series’ stainless steel housing offers exceptional durability. An IP65 rating means this balance protects against the ingress of dust and liquids into electronic components that can happen from normal spills and splashes. Smooth, continuous lines of the TS design make cleanup effortless.

The mono-metal tuning fork sensor provides unrivaled stability with an extremely small margin of error. In this tiny device, experience sensitivity 50 times greater than that of any load cell.

Features:

Stainless Steel, IP65
Large 18 mm Liquid Crystal Display (LCD) with backlight
Selectable modes
13 units of measurement
MMTS (Mono-Metal Tuning Fork Sensor) provides quick
response and stability
115 VAC adaptor included (230 VAC optional)
Semi-automatic calibration (external weight)
RS-232 bidirectional

Measurement Modes:

Weigh Mode - Toggle between two units of measurement
Piece Counting - Operates as a counting scale
Percentage Weighing - A sample is referenced to a 100% standard given
Density Measurement - With optional under hook
Unit Conversion - Converts values of 13 separate units of measurement
Cumulate Function - Adds samples to supply cumulative weight
Animal Weighing - Value is displayed after accounting for animal movement
Limit Function - References weight to stored limits

Optional Accessories:

Under-weigh hook
Waterproof RS-232 cable

Washdown RS232 Benefits

In many food-production facilities, weight values need to be recorded into a computer. This can be accomplished with an RS-232 feature that allows the scale to connect directly to a PC. But most scales with RS-232 aren’t designed to tolerate moist environments. Consequently, weighing in wet areas often means spending extra time manually collecting values and transposing them into a computer again later. Not only is this labor intensive and time consuming, but it opens the door for costly errors.

The Rice Lake TS Series balance brings together the benefits of an RS-232 interface with the
convenience and durability that comes with an IP65 rating.

The data stream from the TS Series to the PC is an ASCII serial string, easily interpreted by
many software programs. Sending the weight values directly from the balance to a PC:

Removes the extra step
Eliminates manual entry
Reduces errors
Eliminates need for paper

Weighing Units for Rice Lake TS-6200 Balance
GRAMS	6200 x 0.1 g
DECIMAL OUNCE	210 x 0.005 oz
DECIMAL POUND	13 x 0.0005 lb
TROY OUNCE	190 x 0.005 ozt
PENNYWEIGHT	3900 x 0.1 dwt
CARAT	31000 x 0.5 ct
MOMME	1600 x 0.05 mm
GRAIN	95000 x 2 GN

TS-6200 Stainless Steel - Tuning Fork Precision Balance
Capacity x Resolution (g)	6,200 g x 0.1 g
Units	g, ct, oz, lb, ozt, dwt, GN tl (Hong Kong), tl (Singapore, Malaysia), tl (Taiwan), momme, tola
Platform Dimensions	7.48" x 7.48" / 190 x 190 mm
Scale Dimensions	12.2" x 8.2" x 3.4" / 310 x 208 x 87 mm
Repeatability	0.1 g
Linearity	(+/-) 0.1 g
RS232	9 pin D-sub male
Operating Temperature	32–104°F (0–40°C), 80% RH or less
Calibration	External calibration weight
Weigh Sensor	Tuning Fork
Display	LCD with backlight
IP Rating	IP65
Power	115 VAC adaptor included (230 VAC optional)
Warranty	5 Year Manufacturer's Limited Warranty

We want you to be completely satisfied with your purchase. If you're unsatisfied with your purchase, please call the Customer Service Department at 603-782-8599 to facilitate an exchange due to manufacturer defect.

Exchanges can be processed within 5 business days of receipt. Please call before shipping any products back to us so we can issue a Return Material Authorization Number (RMA#). You will need to place this number clearly on the return packaging. Please remember to include all contents such as promotional items, accessories, and instruction manuals that came in the original order. The buyer is responsible for freight charges when exchanging purchases. Exchanges can only be made for the same purchased model due to defects. RMA numbers expire after 20 days.

After five days you must call the manufacturer regarding the warranty.

We reserve the right to refuse to issue credit for any item that has been used, misused or damaged. We also reserve the right to charge a restocking fee of up to 25% on returns of opened, used, or damaged products.

We are not responsible for lost or stolen returned merchandise before it reaches our warehouse and signed for by one of our employees.

A purchase cannot be cancelled once it has been shipped. Undeliverable or refused shipments will be subject to a 25% restocking charge plus the cost of shipping and handling. Special orders, custom items, calibration weights and baby scales cannot be returned. All sales are final.
