7025XL Scale

Enlarge 7025XL

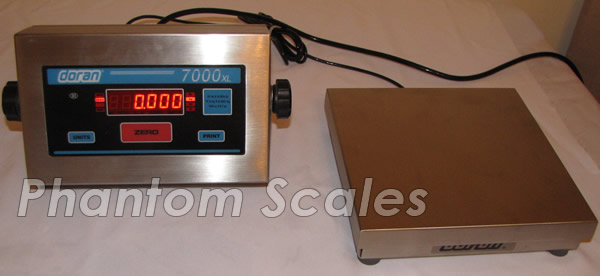

Doran 7025XL Scale for Sale

For the best in washdown protection and durable construction consider the Doran 7025XL stainless steel bench scale.  7000XL Series is legal for trade, has IP69K rated washdown protection and includes 1,000 percent overload protection.  Options are available for connectivity and printing but we advise calling us if you need a custom configuration to ensure you get exactly what you need at the most competitive price.

Regular Price: $1,298.50

Ground S&H: $65.00

Capacity x Resolution: 25 lb x 0.005 lb






Mounting Bracket $85.00
Internal Bluetooth Communications Only (Factory Install) $125.00
Bluetooth Internal Communications w/ USB Adapter $220.00
Ethernet Wired $395.00
USB Interface $195.00
USB Waterproof Cable, 16 ft $90.00
Thermal Label Printer $600.00
Impact Printer $600.00

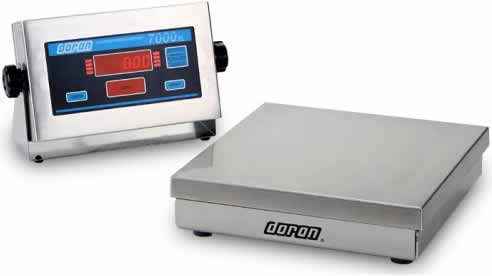

Washdown ScaleDoran Excel Series 7000XL is the latest evolution of our time-proven 7000XL Series Scales. For years its been a workhorse in the toughest of working environments, now it can be put to work in a wider variety of tasks with the Excel Series Design. From a simple dough scale on a baker’s bench to a data collection instrument connected to a computer network, the 7000XL is adaptable to fit your specific needs.

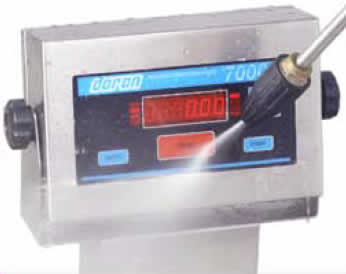

Superior washdown protection has been engineered into the Model 7000XL Bench Scale. From the heavy guage stainless steel to the innovative gasket design, this scale meets the NEMA4X and IP69K classification for washdown protection.

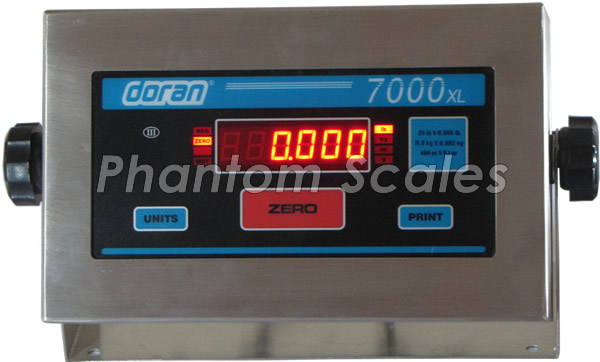

Doran 7000XLM Indicator

Stainless Steel ScaleEngineered to stand up in the harshest environment, the sealed, super tough “Guardian©” touch panel resists moisture and puncture damage. Simple controls - ZERO, UNITS, and PRINT - make it easy to use, quick to train employees and prevents operator error.

Take the 7000XL to new levels with the enhanced features made possible with the new Excel Series Design. Choose from a variety of communication options including Wired or Wireless Ethernet. Control a mixing or batching operation by simply adding setpoints and relays.

Standard Features:

  • IP69K / NEMA4X Washdown Safe
  • 304 Stainless Steel Construction
  • 1000% Overload "Quad Spring" Base
  • Heavy Duty "Guardian" Touch Panel
  • Powerful Excel Features and Options
  • Legal for Trade - NTEP Approved
  • 2 Year Warranty - Parts and Labor

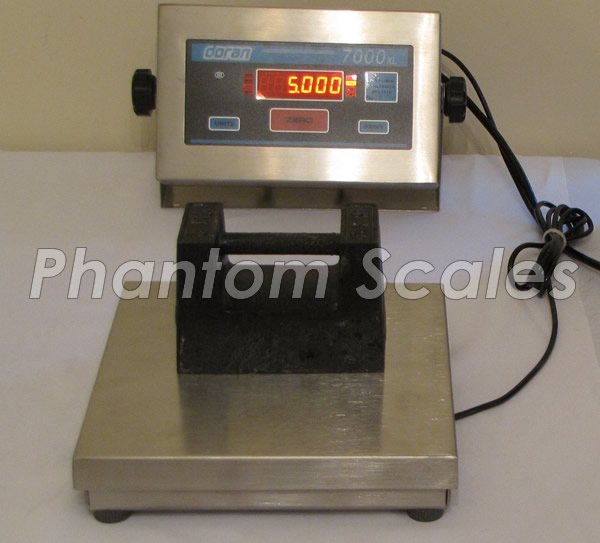

Doran Washdown Scale

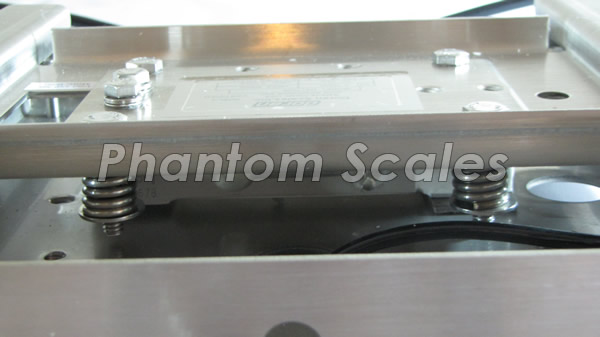

Unique “Quad-Spring©” design protects the sensitive load cell from shock and overload damage. Protected to a maximum of 10 times the base load rating sets the new industry standard - a feature only available from Doran.
Quad Spring Base

Doran 7025XL - Washdown Bench Scale
Capacity x Resolution (lb) 25 lb x 0.005 lb
Capacity x Resolution (kg) 11.3 kg x 2 g
Capacity x Resolution (oz) 400 oz x 0.1 oz
Units lb, kg, g, oz, or lb:oz
Controls ZERO, UNITS, and PRINT
Indicators lb, kg, g, oz, NEG, ZERO, & MOT
Output Programmable, Bi-directional RS-232 interface
Construction 304 Stainless Steel (Meter: 16 Gauge) (Base: 7 Gauge Maximum)
Indicator Dimensions 6" x 10" x 3"
Platform Dimensions 10" x 10" x 2"
Display 6 Digit, Red LED, 0.56" High
Safety Overload 1000% Overload DXL Base
Legal For Trade (Meter) CC #99-129 10,000d Class III
(Base) CC #97-097A1 5,000d Class III
Power 115 VAC, 50/60 Hz

Doran 7025XL

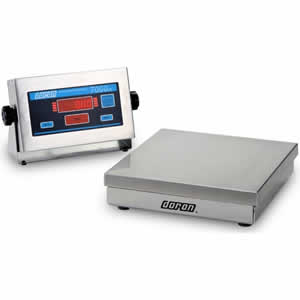

Doran Excel Series - 7000XL Stainless Steel Bench Scales
Model Cap x Res (LB) Cap x Res (KG) Platform Size
7002XL 2 lb x 0.0005 lb 0.9 kg x 0.2 g 10" x 10"
7005XL 5 lb x 0.001 lb 2.3 kg x 0.5 g 10" x 10"
7010XL 10 lb x 0.002 lb 4.5 kg x 1 g 10" x 10"
7025XL 25 lb x 0.005 lb 11.3 kg x 2 g 10" x 10"
7050XL 50 lb x 0.01 lb 22.7 kg x 5 g 10" x 10"
7050XL/12 50 lb x 0.01 lb 22.7 kg x 5 g 12" x 12"
7100XL/12 100 lb x 0.02 lb 45 kg x 10 g 12" x 12"
7050XL/15 50 lb x 0.01 lb 22.7 kg x 5 g 15" x 15"
7100XL/15 100 lb x 0.02 lb 45 kg x 10 g 15" x 15"
7200XL/15 200 lb x 0.05 lb 91 kg x 20 g 15" x 15"
