12,000 g x 1 g
Platform: 14.8" x 12.2"
NTEP Class II
Price: Lowest Price in Cart
Ground S&H: $50.00

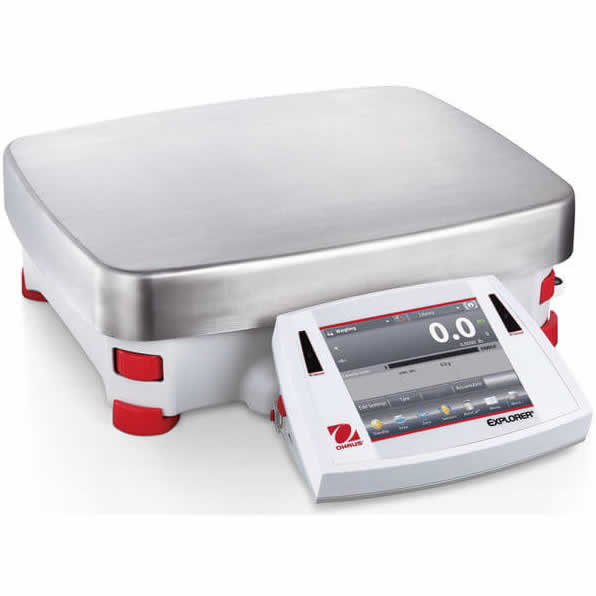

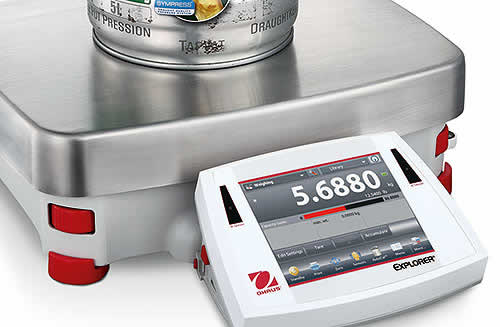

The Explorer series includes three high-capacity precision models with capacities up to 35 kg. Explorer high capacity balances offer the same intuitive features, such as AutoCal™ and a 1 second stabilization time, with additional functions and attributes to support higher capacity weighing applications. Standard Features:
|
||||
| Ohaus Explorer Series - High Capacity NTEP Approved Balances | |||
|---|---|---|---|
| Model | Cap x Res (Grams) | Calibration Type | Pan Size |
| EX12001N | 12,000 g x 1 g | Internal Calibration | 14.8" x 12.2" |
| EX24001N | 24,000 g x 1 g | Internal Calibration | 14.8" x 12.2" |
| EX35001N | 35,000 g x 1 g | Internal Calibration | 14.8" x 12.2" |
| Explorer High Capacity NTEP EX12001N Specifications | |
|---|---|
| Capacity x Resolution (g) | 12,000 g x 0.1 g |
| Capacity x Resolution (lb) | 26 lb x 0.0005 lb |
| Verification Interval e (g) | 1 gram |
| Class | II |
| Repeatability | ± 0.1 g |
| Linearity | ± 0.2 g |
| Sensitivity Drift PPM/°C | 3 |
| Typical Min. Weight | 210 g (USP, K=3, U=0.1%) |
| Weighing units | g, kg, ct, gn, lb, oz, ozt, N, dwt, hkt, sgt, twt, mom, tical, msg, tola, and 3 custom units |
| Display | Full color VGA graphic display, 4 wire resistive touch screen |
| Display Size | 5.7" / 145 mm (diagonal) |
| Tare Range | To capacity by subtraction |
| Stabilization time | ≤ 1 second |
| Calibration | AutoCal - fully automatic internal calibration system |
| Communication | Standard RS232 and USB / Optional Ethernet or 2nd RS232 |
| Display Housing | 7.68" x 3.54" x 6.06" |
| Base Dimensions | 14.84" x 4.72" x 17.44" |
| Platform Size | 14.8" x 12.2" x 4.72" |
| Operating Temperature | 50°F to 86°F / 10°C to 30°C |
| Approval | NTEP CC 12-012 |
| Sensor Type | Electromagnetic Force Compensation |
| Shipping Weight | 25.8 lb / 12.5 kg |
| Net Weight | 22 lb / 10 kg |
